3500W & 5000W
VERSIONS AVAILABLE*
200N.m./280N.m.
PEAK TORQUE*
36V to 72V
COMPATIBLE
32T & 38T
CHAINRING OPTIONS
68-120MM
BOTTOM BRACKET OPTIONS
**PRESSFIT BOTTOM BRACKET
COMPATIBILITY WITH ADAPTER
ADVANCED TORQUE SENSING TECHNOLOGY
Patented torque sensor technology offers one of the best pedal assist sensations in the ebike world. Paired with our in-house firmware tuning and a robust sprag clutch, the CYC torque sensor ensures instant engagement and an intuitive pedal assist experience. The Gen 3 ISIS splined standard torque sensing system ensures durability even with extreme riding.
ULTIMATE EBIKE POWER
The latest X-Controller series is built to give you ultimate freedom. In-house firmware optimizes the throttle and pedal assist experience. Paired with the CYC Ride Control mobile app, you can unleash all the possibilities at your fingertips.
The mobile app is not the only way to customize your system. The controller is also programmable via the included display. Integrated for your convenience.
SUPREME COMPATIBILITY

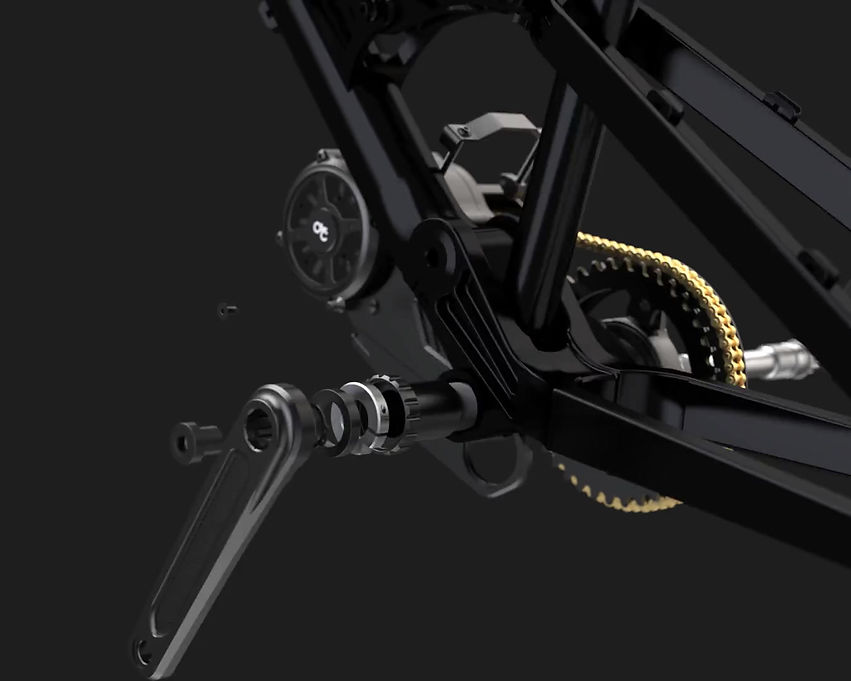

Modular design enables multiple frame fitment with a single motor. From the mountains to the coastlines, the Pro Gen 3 suits over 90% of available frames.
BB OPTIONS
*68-83mm, 100mm, 120mm BSA & Pressfit version available
CHAINRING OPTIONS
32T, 38T, & 40T options available
SPECIFICATIONS
Title | Value |
|---|---|
Compatibility | 68-83mm, 100mm, 120mm BSA & Pressfit version available *Other BB versions may be compatible, please contact us. |
Chainring | 32T with 53T motor chainring, 38T with 63T motor chainring, 40T with 72T motor chainring |
Q Factor | 190mm |
Crank Arm Length | 165mm or 175mm |
Bracket Materials | 7075-T6 |
Total Weight with Crank Set & BB | 5.6 kg |
Weight of Motor & Controller | 3.8 kg |
Colour | Anodized Black |
Overall Efficiency | > 90% |
Max Torque (at Crank) | 200 N.m. (CYC X6) / 280 N.m. (CYC X12) |
Rated Power | 3500W (CYC X6) / 5000W (CYC X12) |
Max RPM (at Crank) | > 300 rpm |
Rated Voltage | 36 - 72V |
DIMENSIONS
SPACER INFORMATION
