IDEAL PLUG-IN BATTERY SOLUTIONS
Specifically designed for any type of ride. Make every trip count with our very own high-quality, durable, and sleek battery solutions.
*This product complies with UN38.3, IEC62133, RoHS, FCC, & CE standards

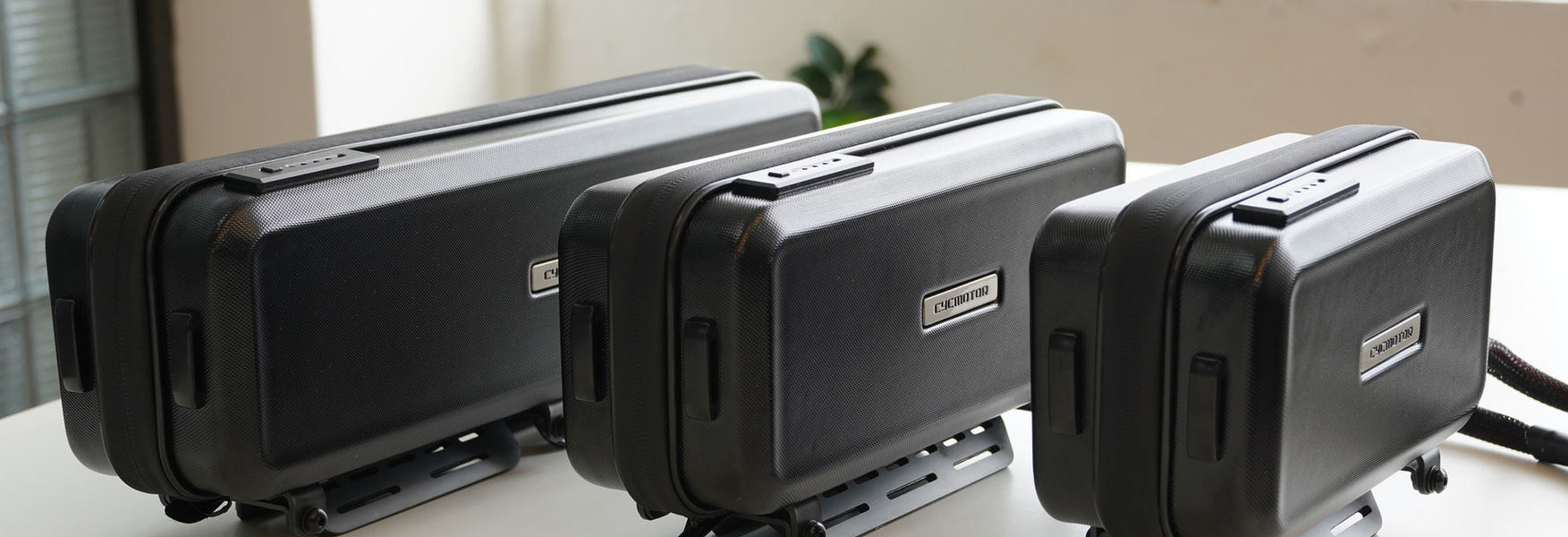

B-36/B-52/B-52L
VERSIONS AVAILABLE
FAST CHARGING
CAPABILITIES
36V & 52V
OPTIONS AVAILABLE
21700 CELLS
HIGH QUALITY SAMSUNG 21700 CELLS
ICE-BLUE BATTERY LEVEL INDICATORS
HIGH DISCHARGE BMS WITH SHORT-CIRCUIT PROTECTION
WEATHER & IMPACT RESISTANT

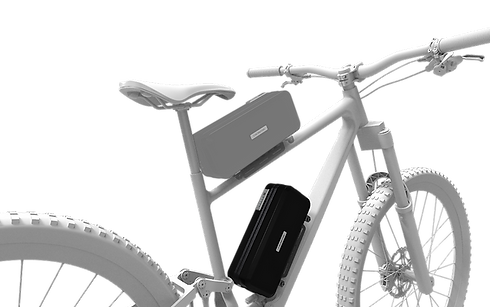

SECURE AND VERSATILE DUAL-MOUNTING SOLUTION
SPECIFICATIONS
Battery Voltage
Battery Cell Type
Battery Capacity
Max. Continious Current
Weight (battery pack)
Weight (battery mount)
Dimensions (L x W x H)
B-36
36V 10s2p
Samsung 50E 21700
50E: 10Ah (360Wh)
50E: 30A
2.2 kg
0.1 kg
199 x 81 x 104mm
B-52
52V 14s2p
Samsung 40T 21700/
Samsung 50E 21700
40T: 8Ah (416Wh)
50E: 10Ah (520Wh)
40T: 70A
50E: 30A
2.9 kg
0.2 kg
259 x 81 x 104mm
B-52L
52V 14s3p
Samsung 40T 21700 /
Samsung 50E 21700
40T: 12Ah (624Wh)
50E: 15Ah (780Wh)
40T: 70A
50E: 45A
4.3 kg
0.3 kg
364 x 81 x 104mm
BATTERY OPTIONS
SAMSUNG 40T 21700
B-52
Capacity:
416wh
Charger type:
58.8V 4A XT90, 2 hours until fully charged
BMS:
70A cont.
B-52L
Capacity:
624wh
Charger type:
58.8V 4A XT90, 3 hours until fully charged
BMS:
70A cont.
SAMSUNG 50E 21700
B-36
Capacity:
360wh
Charger type:
42V 3A XT90, 3.5 hours until fully charged
BMS:
30A cont.
B-52
Capacity:
520wh
Charger type:
58.8V 4A XT90, 2.5 hours until fully charged
BMS:
30A cont.
B-52L
Capacity:
780wh
Charger type:
58.8V 4A XT90, 3-4 hours until fully charged
BMS:
45A cont.
CLICK HERE FOR USER MANUALS
& PRINTOUTS
